6h40.12.HTML
6h40.12: TRANSVERSE NATURE OF LIGHT

PURPOSE: To demonstrate scattering of light and polarization of scattered light.

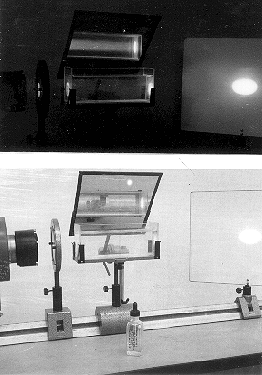

DESCRIPTION: A bright point light source with condenser lens and iris is directed through a polarizer and a tank of water onto a screen. Stirring a tiny bit of soap solution into the water causes scattering from the soap molecules. The polariz ation of the scattered light can be demonstrated by rotating a polaroid sheet in the incoming light. Putting in a few drops of soap solution at a time, the sunset experiment can be slowly carried out. Or very quickly, if you put in too much soap.

SUGGESTIONS:

REFERENCES:

EQUIPMENT: Bright point source with condenser and iris, mounted polaroid, water tank with mirror, screen, and soap solution.

SETUP TIME: 10 min.
