PURPOSE: To demonstrate the effect of series and parallel connections with identical light bulbs.

DESCRIPTION: 12 Volt DC light bulbs can be wired in series or in parallel across 24 VDC circuit. Turn on switchs to activate light bulbs.

SUGGESTIONS:

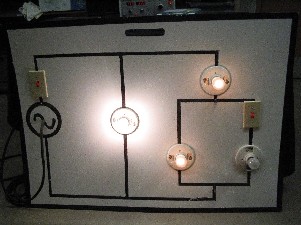

EQUIPMENT: DC Power Supply and identical 12 VDC bulbs mounted on the Combination Light Boards.

SETUP TIME: 30 min.
